0548001 Incremental Encoder

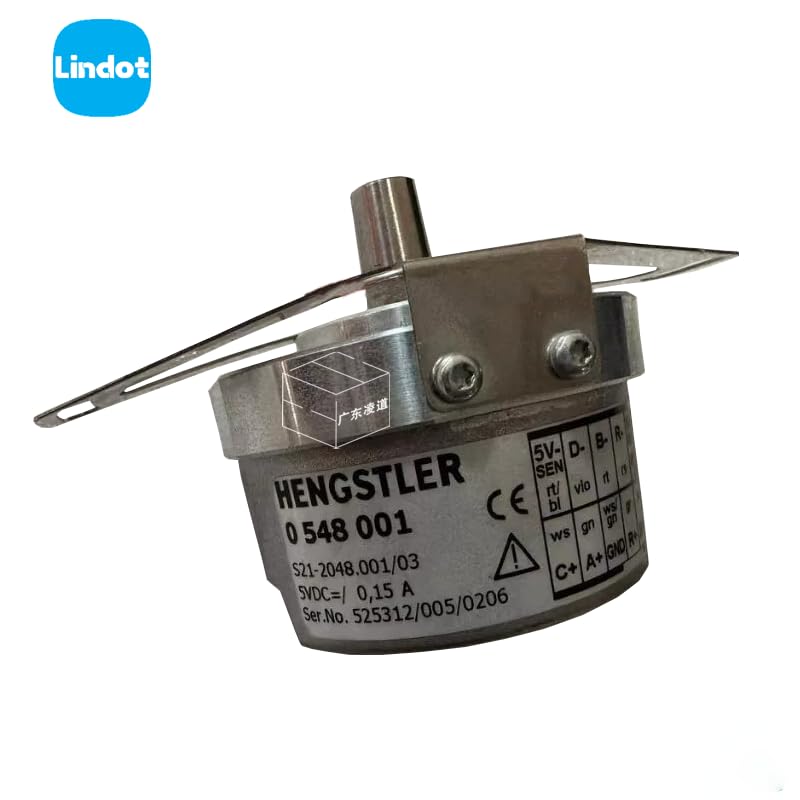

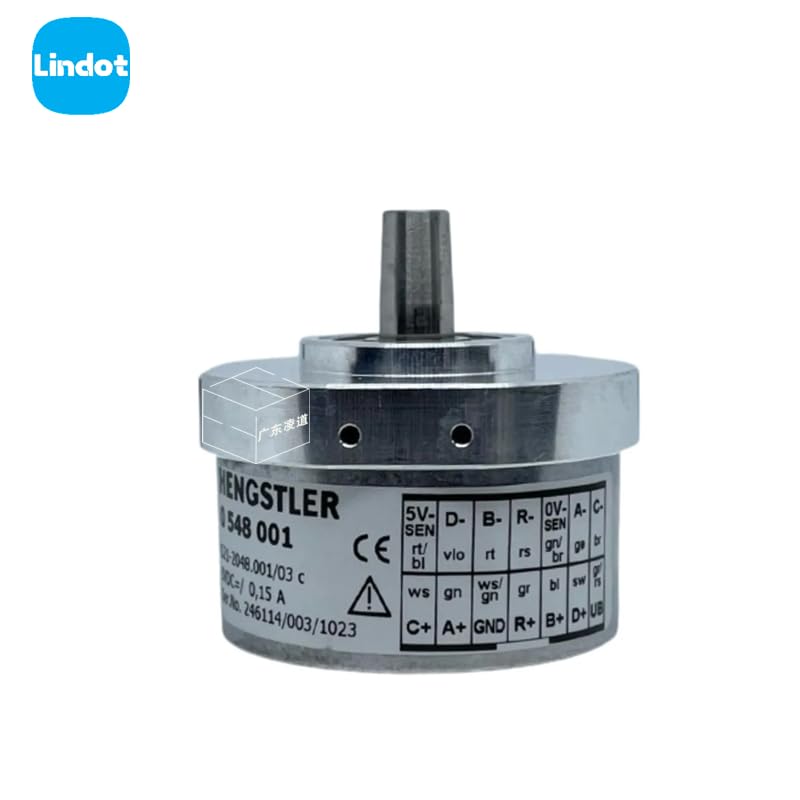

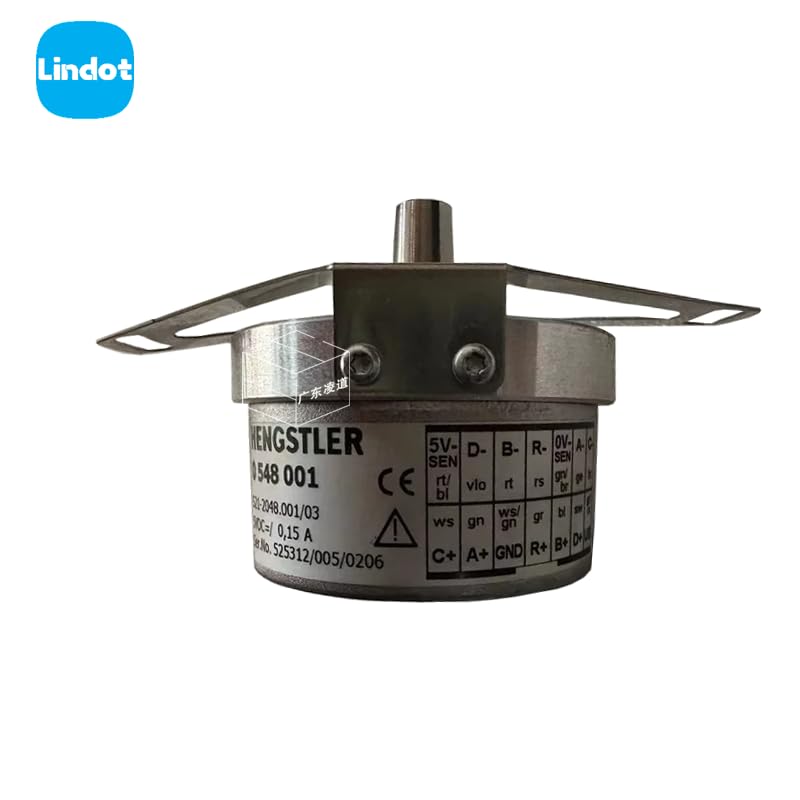

The Hengstler 0548001 is a high-precision incremental optical encoder designed for demanding industrial applications. This robust encoder features 2048 pulses per revolution and operates on 5VDC at 0.15A, making it ideal for accurate position and speed measurement. With its solid 10mm shaft diameter and 53mm housing diameter, this encoder delivers reliable performance in various industrial settings including steel manufacturing, paper production, and crane machinery. The encoder supports multiple output interfaces including push-pull and RS422, offering versatile integration options. Operating efficiently across temperatures from -15°F to 248°F, it can achieve impressive speeds up to 12,000 RPM while maintaining accuracy. The device features IP40 protection and includes sophisticated monitoring capabilities for undervoltage, contamination, and system health. Its 1Vss sine-cosine output ensures precise measurement, while its robust construction withstands industrial electromagnetic interference, meeting EN61000-4-4 severity level 4 standards. This encoder is particularly suited for applications requiring high accuracy and reliable performance in challenging industrial environments.

• PRECISION ENCODER: High-accuracy optical encoder with 2048 pulses per revolution, providing precise position and speed measurement for industrial applications
• PERFORMANCE: Maximum speed of 12000 RPM with 500kHz bandwidth, ensuring minimal downtime and optimal motor performance
• INTERFACE: Features 1Vss sine-cosine output signals with multiple output options including push-pull and RS422 compatibility
• OPERATING RANGE: Functions reliably in temperatures from -15°F to 248°F, with robust interference resistance meeting EN61000-4-4 Level 4 standards
• SPECIFICATIONS: 2.08-inch outer housing diameter, 0.39-inch solid shaft, IP40 protection rating, and operating voltage of 10-30V DC
